The Y61 is the working legend of GCC desert driving — solid axles, simple strength, and no electronics between you and the terrain. Dakar Forged builds a confirmed 6x139.7 fitment for it in three offsets.

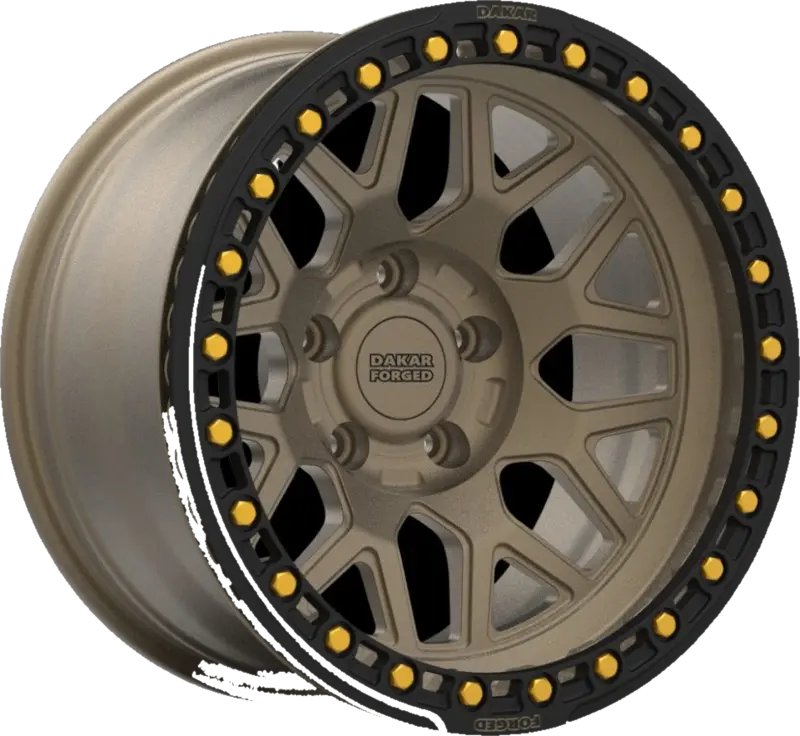

The Patrol Y61 runs the 6x139.7 bolt pattern, and Dakar Forged produces a confirmed fitment for it: 17x8.5 with a 106.1mm wheel bore, available in -20, 0 and +25 offsets depending on model — the Gridlock in ET0 and +25, the Rally and Crawler in ET-20. For a desert-driven Y61 on 33s or 35s, ET0 is the balanced choice; ET-20 pushes the stance wider for stability and presence, while +25 keeps things tucked for a near-stock track.
Seventeen inches is the right diameter for this truck — maximum sidewall for airing down, full clearance over the Y61's brakes, and the tyre choice that GCC desert driving is actually built around.
The bolted lock ring is functional: it mechanically clamps the tyre bead so you can drop into single-digit pressures in the sand without rolling a bead — the reliability the Y61's whole reputation is built on, extended to the wheels.
The Patrol Y61 uses a 6x139.7 bolt pattern (6x5.5"). Dakar Forged wheels for the Y61 are 17x8.5 in 6x139.7 with a 106.1mm bore — a confirmed fitment for the Y61 platform.
No. Although the Y62 shares the 6x139.7 pattern, the current 17x8.5 Dakar Forged range is not a Y62 fitment. If you drive a Y62, contact us through the quote form and we'll advise on availability.
Offsets vary by model: the Gridlock comes in ET0 and +25, while the Rally and Crawler come in ET-20. ET0 is the balanced desert setup for 33–35-inch tyres; ET-20 gives a wider, more planted stance; +25 keeps the wheel tucked near stock track width.
Yes — that's the point of a true beadlock. The bolted ring mechanically clamps the tyre bead, so single-digit pressures for dune driving don't risk separating the tyre from the wheel.
Tell us your vehicle and fitment and we'll build you a quote on a full Dakar Forged set.
Request A Quote →Tell us your vehicle and pick a model — we'll come back with a full-set quote and fitment confirmation.
